Ideal Industries Blue 32A Cable connector 30 piece Set
€15€3 per each
Product details
Product information
2-, 3 & 5-port Gen II lever wire connectors for all applications up to 32A including ring mains. Up to 4mm cable. No need to lift the lever for solid, just push and connect.
- CE marked
- Guarantee - 1 year

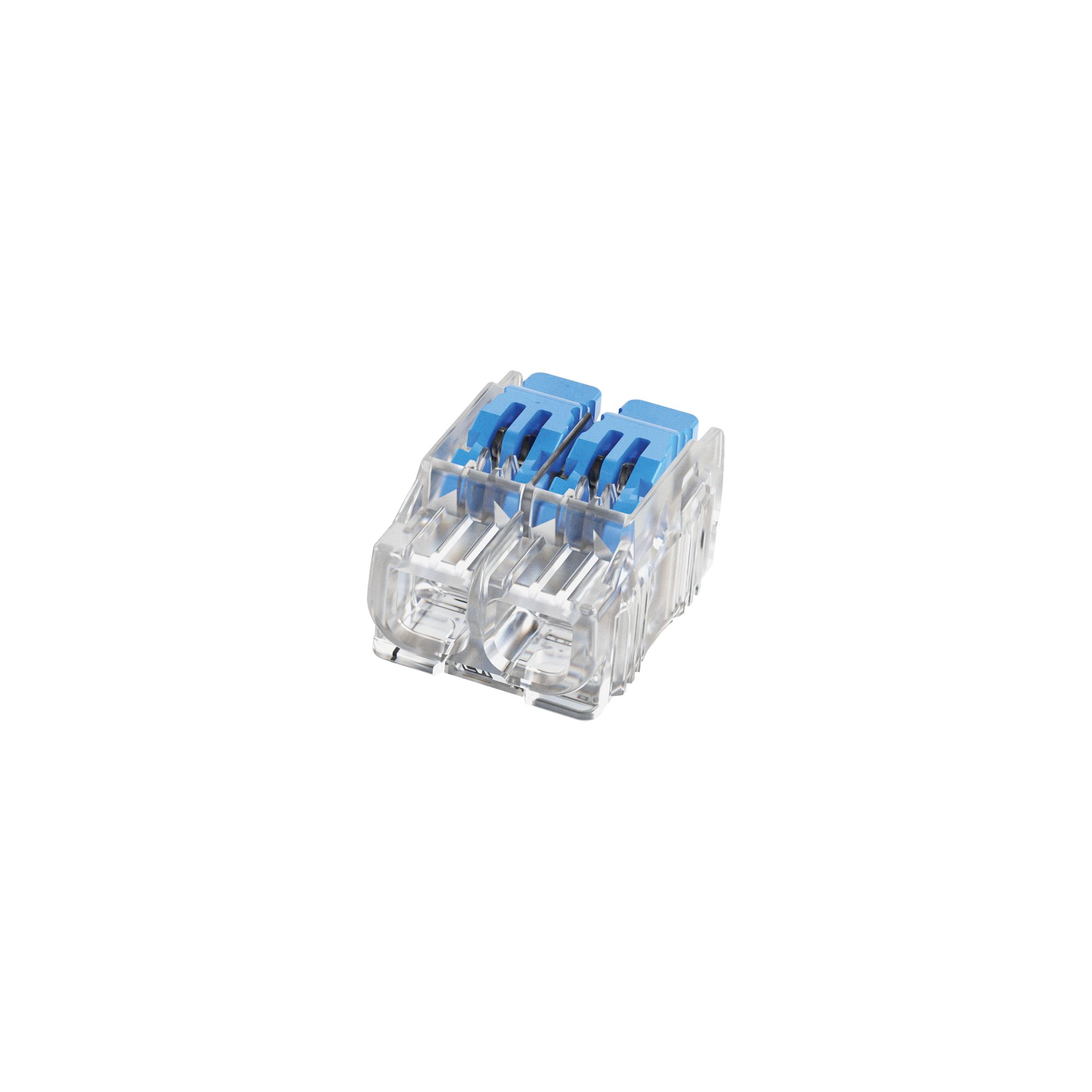

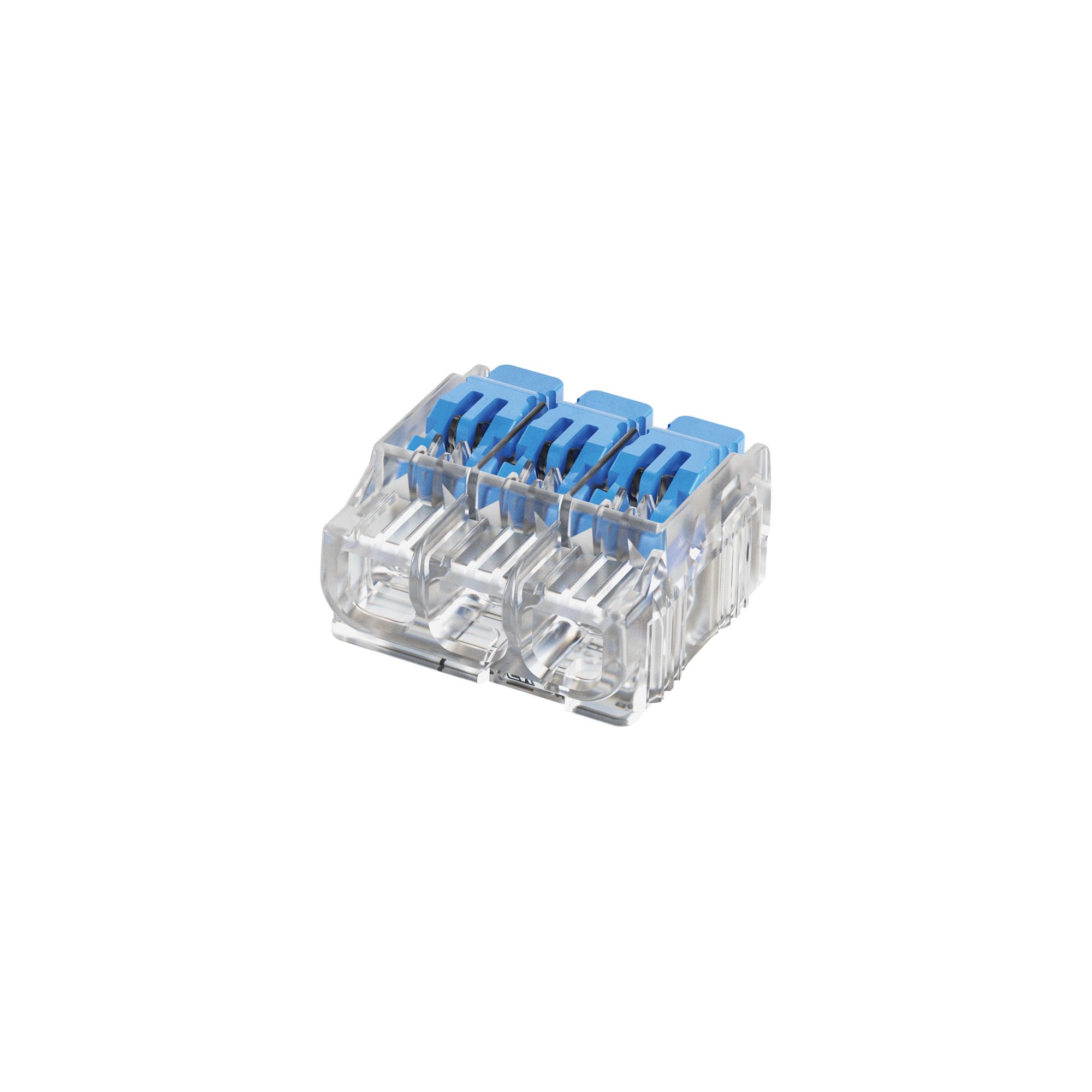

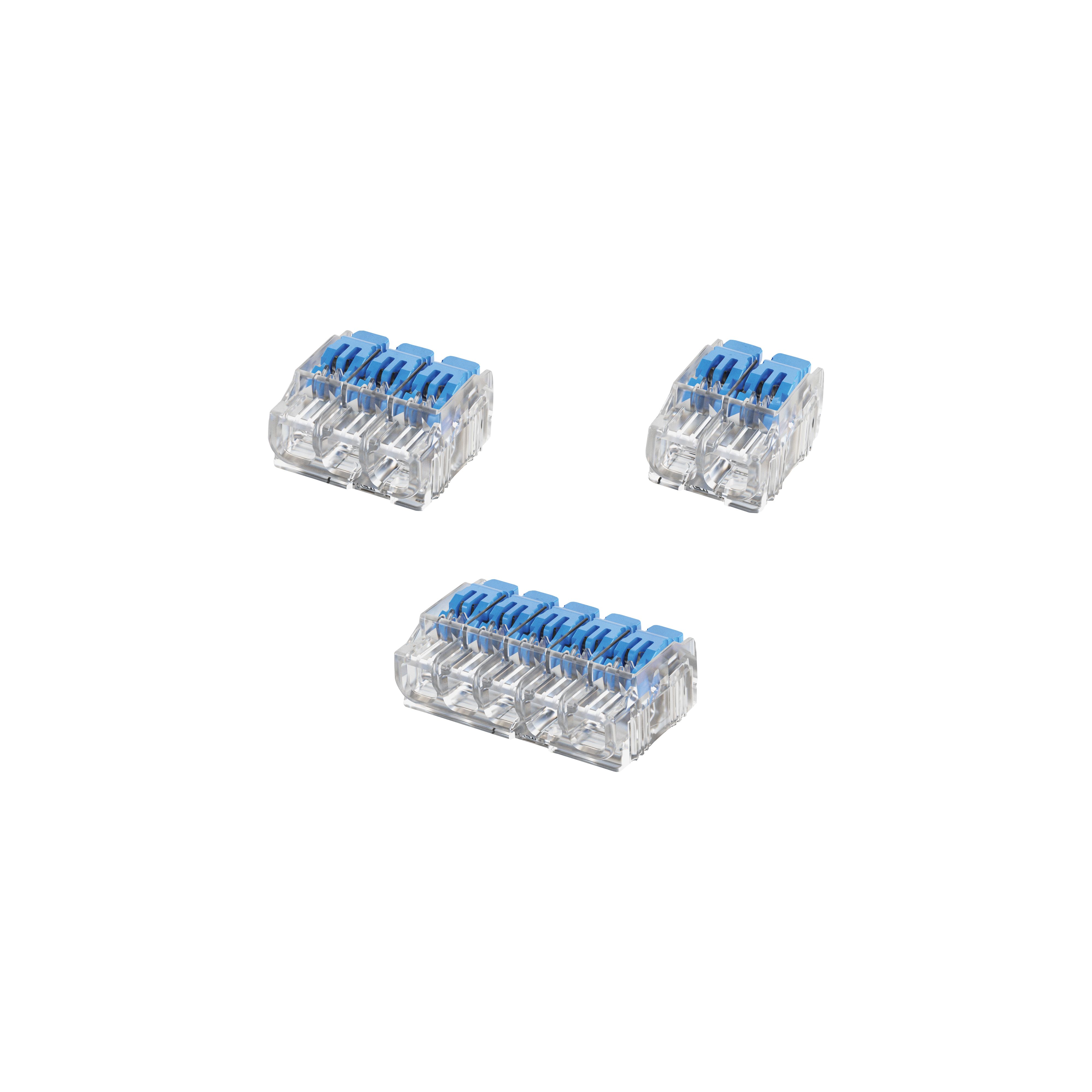

- Includes - 10 x 2 Port lever, 10 x 3 Port lever, 10 x 5 Port lever connectors
- Reusable
Features and benefits
- Quick and easy installation
- All IDEAL connectors have a transparent polycarbonate shell for verification and include a continuity check port
- Safe and reliable
- Large and easy to use Levers
- Safe & Reliable
Specifications
| Colour group | Blue |
|---|---|
| Connection type | Lever |
| IP rating | No IP rating |
| Location | Indoor |
| Material | Polycarbonate |
| Maximum operating temperature | 105°C |
| Model name/number | 30-0099-B |
| Product diameter | 120mm |
| Product height | 150mm |
| Product length | 20mm |
| Product weight | 108g |
| Product width | 120mm |
| Standard | BS 7671:2008 (18th Edition),IEC 60998, UL 486C |
| Voltage | 450V |
| Product code | 0783250269143 |
