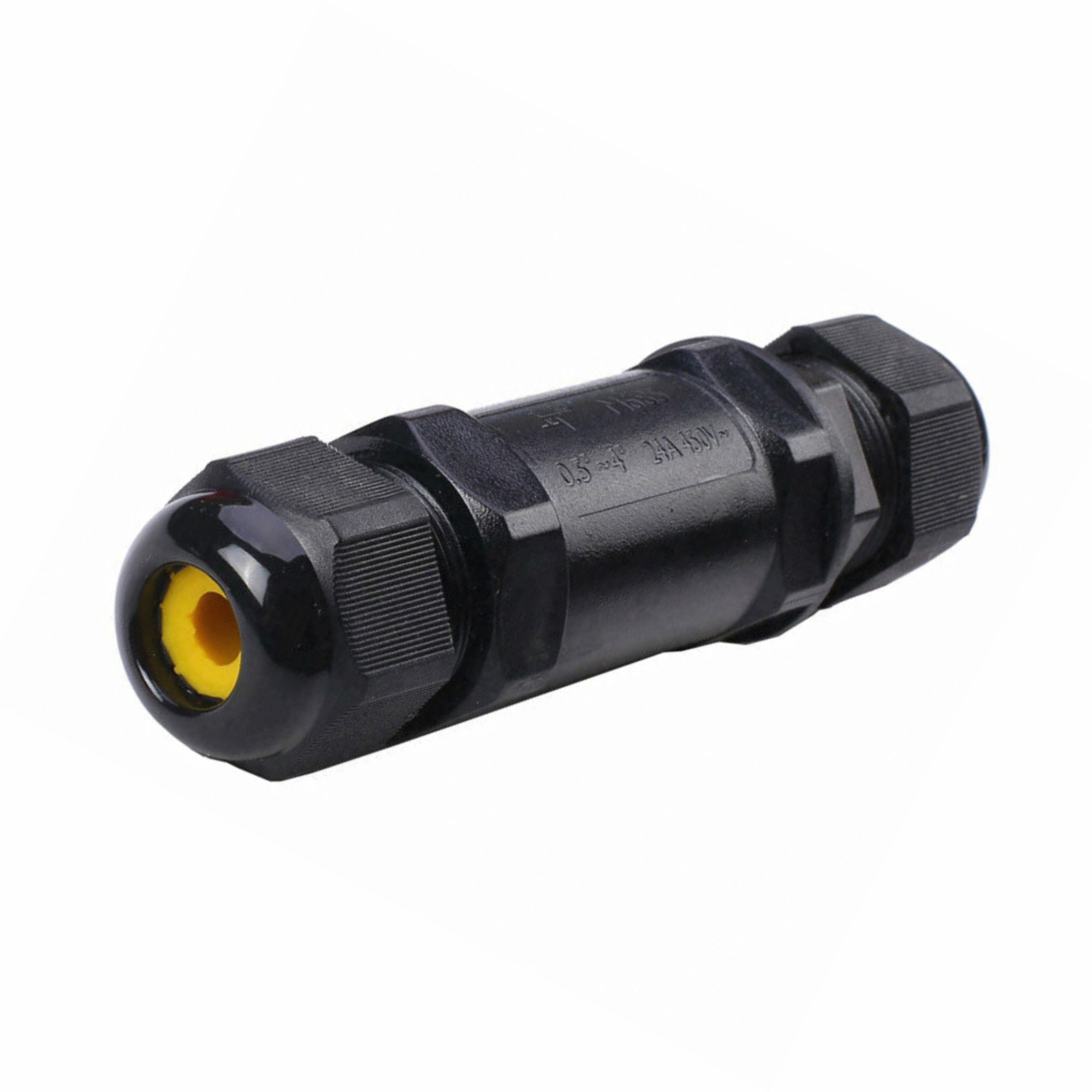

CORElectric Black 24A 5-pole In-line cable joint
€14.40
Product details
Product information
Ideal for below ground electrical installations.
- CE marked
- Guarantee - Statutory
- Comes with 1x Connector
- UKCA marked
Features and benefits
- Outdoor IP68 Connector
- Max. Conductor Size 4mm²
- In Line Cable Joint
- Fire retardant level: V2
- 5pin
- Quick and easy assembly
- Robust construction
Specifications
| Cable capacity (AWG) | 12AWG |
|---|---|
| Colour group | Black |
| Connection type | Screwed |
| IP rating | IP68 |
| Location | Indoor & outdoor |
| Material | Polycarbonate & polyamide (PA6.6) |
| Maximum cable diameter | 15mm |
| Maximum operating temperature | 105°C |
| Model name/number | CE0220 |
| Number of pieces | 1 |
| Number of poles | 5 |
| Number of terminals | 0 |
| Product diameter | 30mm |
| Product height | 30mm |
| Product length | 113.19mm |
| Product weight | 56g |
| Product width | 30mm |
| Standard | SAA, RoHS |
| Product code | 5056054802201 |
