BG 13A Grey Outdoor Weatherproof fused connection unit with RCD
€
33
Checking availability...
Product details
Product information

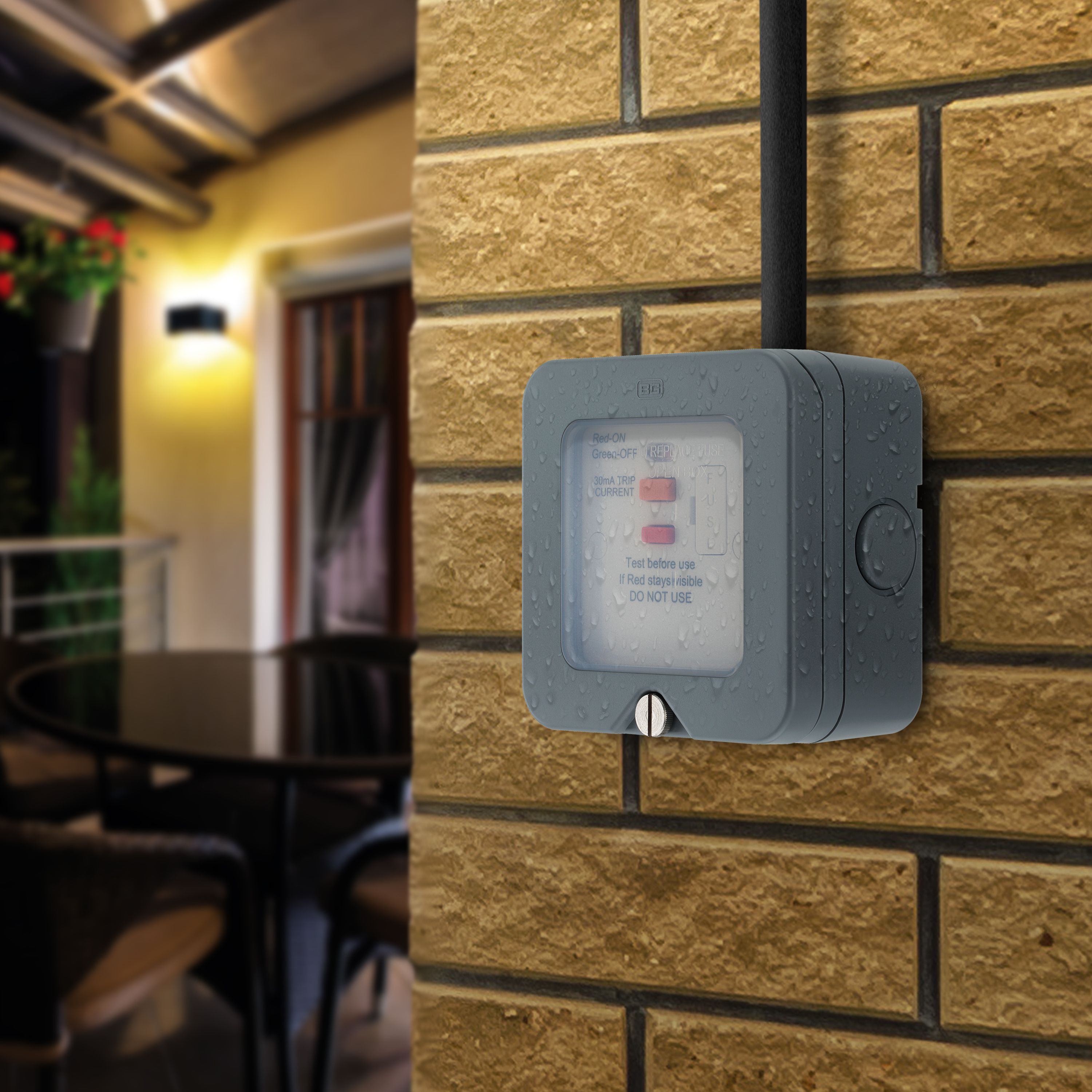

This IP66 This RCD fused connection unit from British General is supplied in a weatherproof mounting box and ideal for outdoor use. This unit will continuously monitor the supply to any electrical appliance hardwired to it, and cuts the power if an earth current fault is detected, protecting against the risk of a fatal electric shock. The clear flexible cover allows you to view the power status and operate switches without opening the unit.
- Guarantee - 25 years
- Only fittings included
- Terminals accept up to 3 x 2.5mm² cables
- Colour-coded terminals with captive screws
Features and benefits
- Cased in an IP66 weatherproof box with flexible see-through cover so the RCD status can be seen and operated without opening the unit.
- Supplied with multiple knock-out mounting box, with multiple gland entry positions
- Latched (passive) version, if set, will retain closed contacts if the mains supply is interrupted
- No need to reset after a loss of power
- 30mA trip current & 40ms trip circuit operation
Specifications
| Brand | BG |
|---|---|
| Model name/number | WP55RCD |
| Colour | Grey |
| Pack quantity | 1 |
| Knockout size | 20mm |
| IP rating | IP66 |
| Knockout position | Top, bottom & side knockouts |
| Number of knockouts | 5 |
| Fused | Fused |
| Power voltage supply | 250V |
| Number of earth terminals | 2 |
| Number of gangs | 1 |
| Number of poles | 1 |
| Amp rating | 13A |
| Product code | 5050765022347 |
