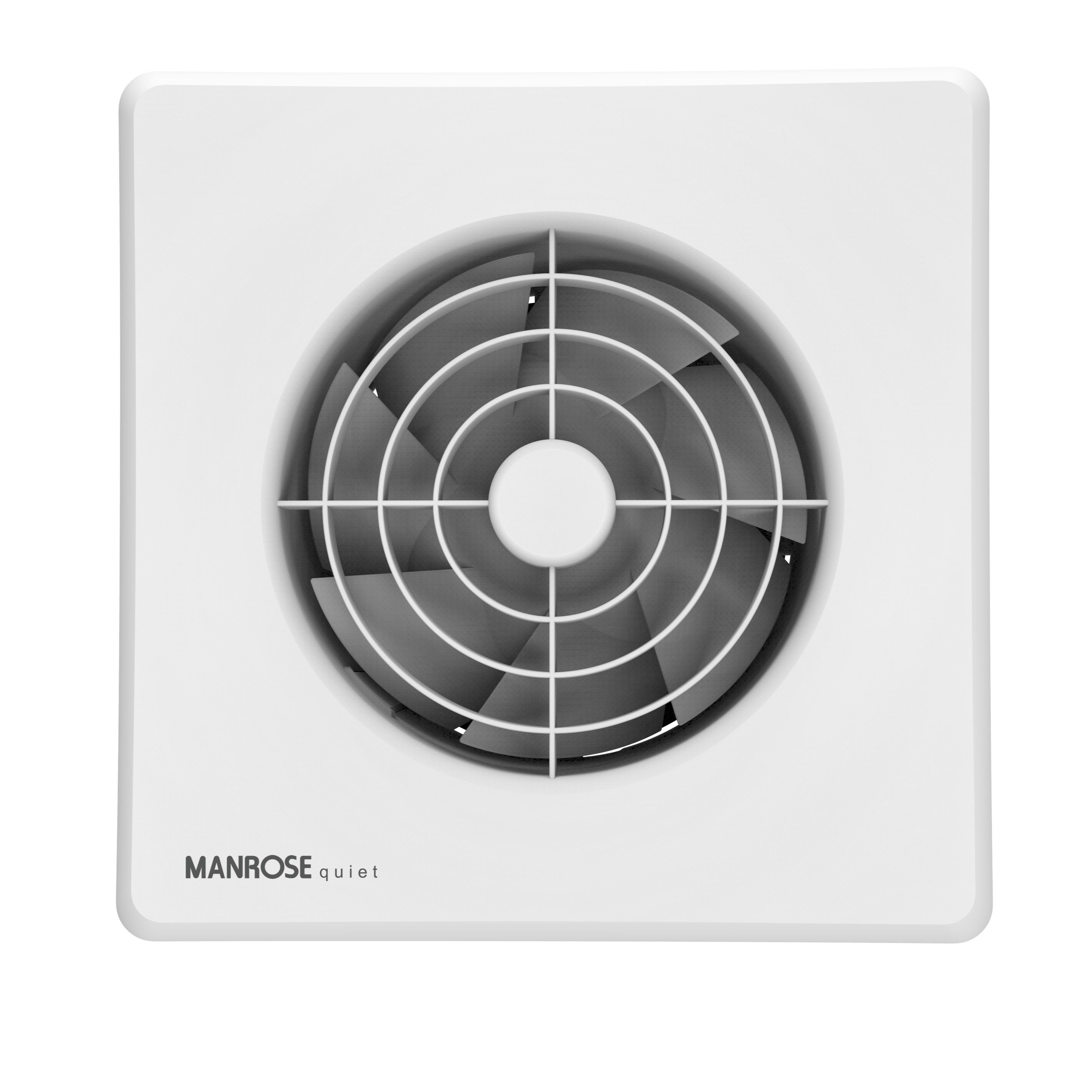

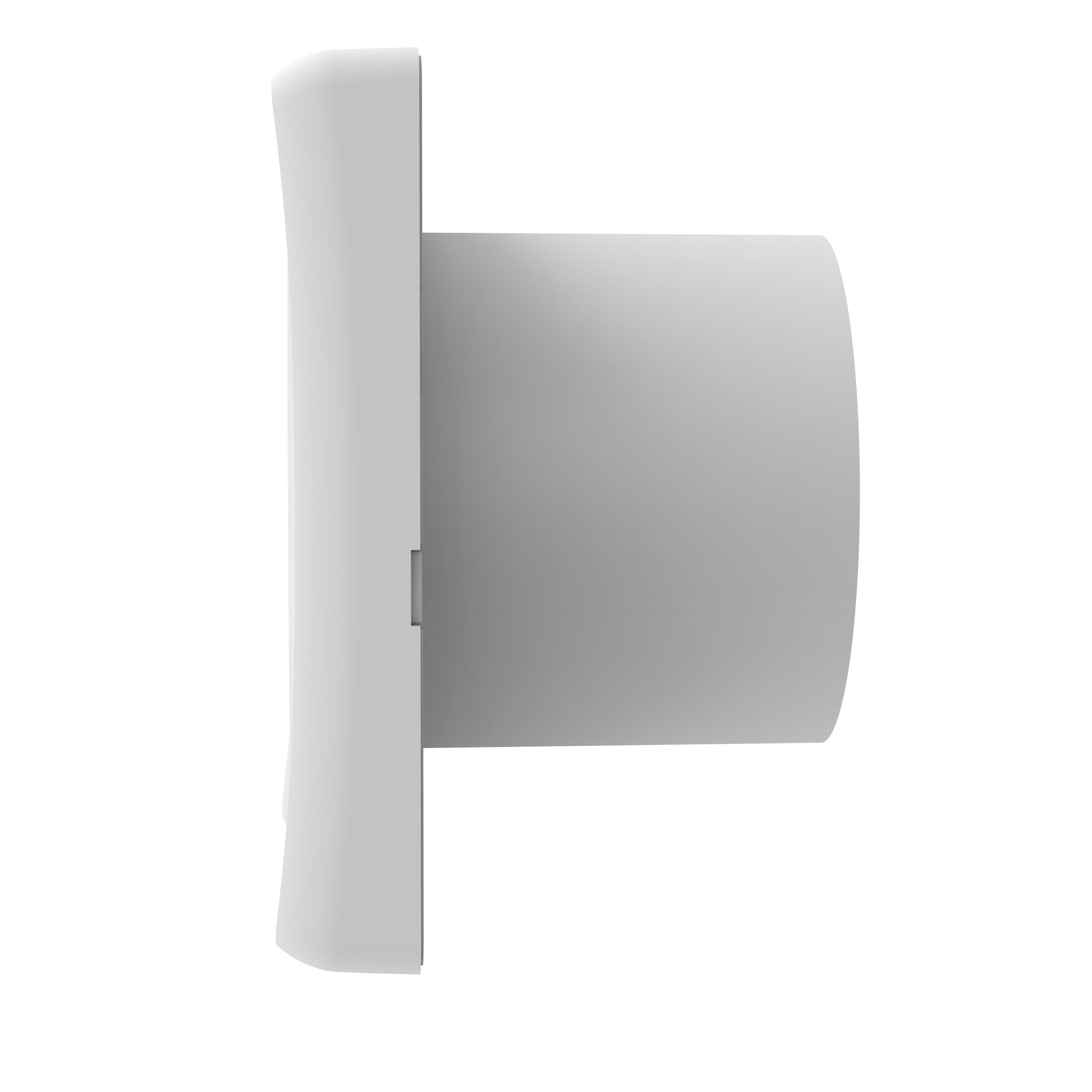

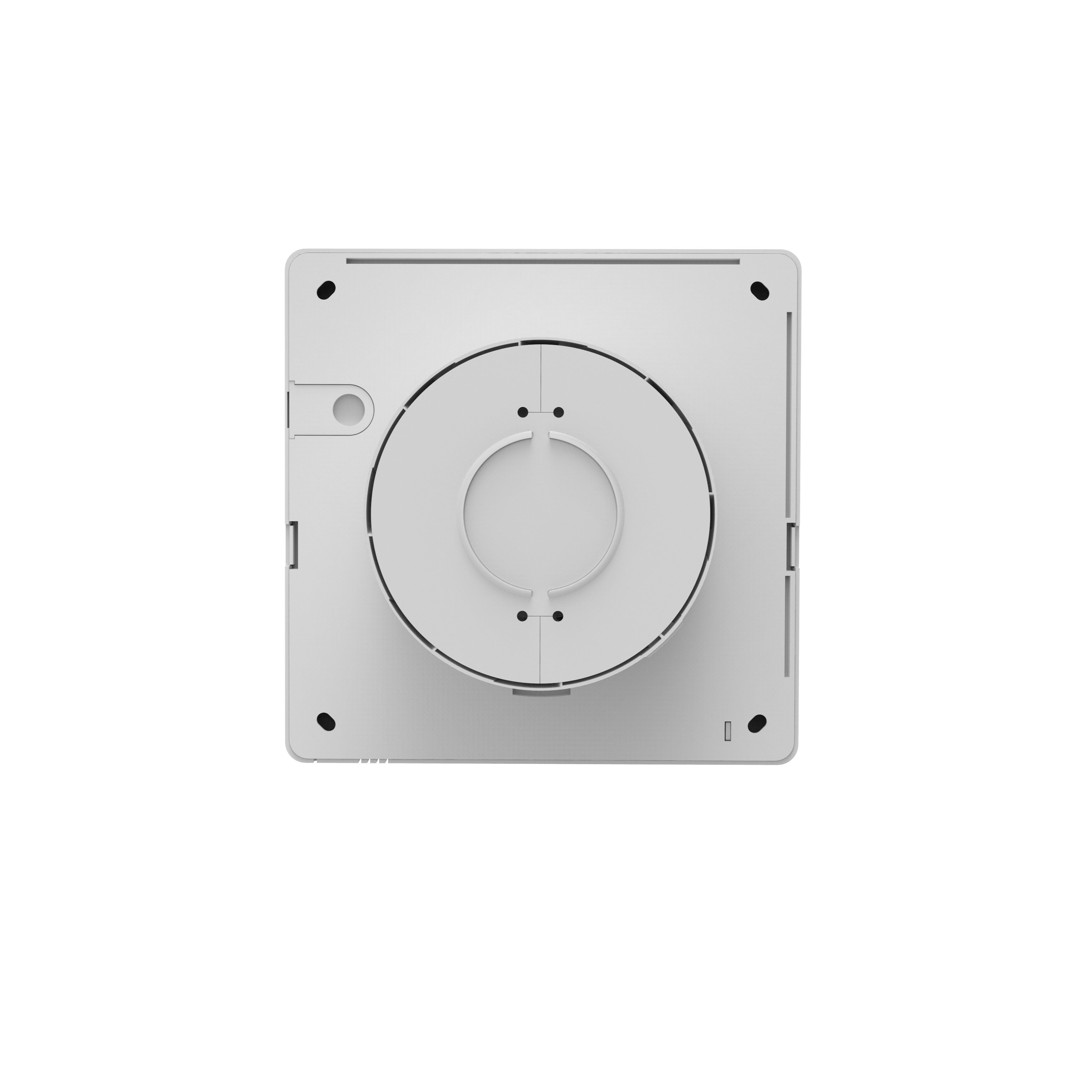

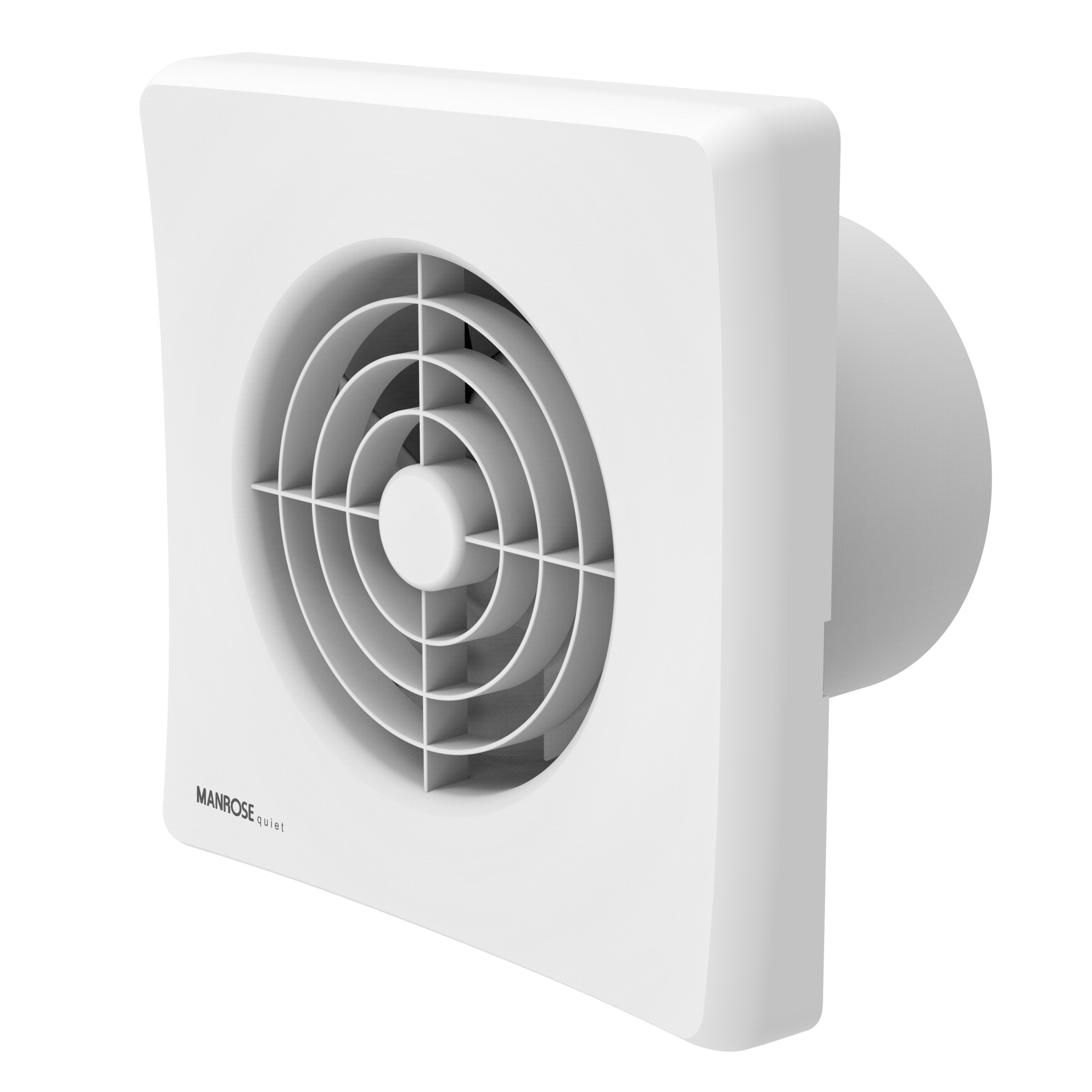

Manrose Bathroom Extractor fan (Dia)100mm - QF100T
Product Features
- The unit also comes complete with a performance enhancing turning vane system located in the spigot to improve performance by maintaining a high output
- High quality ball bearing, long life motors continuously rated and warranted for a minimum of 30,000 hours or 3 years
- Manufactured using high ABS thermoplastics for strength and durability
Product details
Product information
Product information
Keep the air inside your home clean with the use of this white Manrose ABS thermoplastic bathroom extractor fan with timer. It has a 20 minute timer to ensure clean air is circulating.
- Only fixings included
Features and benefits
- The unit also comes complete with a performance enhancing turning vane system located in the spigot to improve performance by maintaining a high output
- High quality ball bearing, long life motors continuously rated and warranted for a minimum of 30,000 hours or 3 years
- Manufactured using high ABS thermoplastics for strength and durability
- Decibel Level of ONLY 27dB(A) at 3m. Over 60% reduction in comparison to standard 4” (100mm) domestic fans
- An impressive extraction rate of 75m3/hr, 21 litres per second
- Equipped with a motor with a maximum power consumption of 4.8 W
- Manrose range with an SFP of 0.24W/l/s
Specifications
| Brand | Manrose |
|---|---|
| Control type | Timer |
| Extraction rate | 85m³/h |
| Height (mm) | 163mm |
| Material | ABS plastic |
| Model name/number | QF100T |
| Noise level at 3m | 27dB(A) |
| Pack quantity | 1 |
| Power consumption in use | 4.8W |
| Power voltage supply | 240V |
| Spigot diameter | 100mm |
| Weight (g) | 675g |
| Width (mm) | 163mm |
| Product code | 5020953931188 |
Safety Information
Switch off mains supply before making any electrical connections.
Installation must be supervised by a qualified electrician.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other open-fire appliances when mounted in outside windows or walls.
Fan must be disconnected from electrical power before any maintenance is carried out.
These units are for fixed wiring only. A flexible cord must not be used. All wiring must be fixed securely and the cable to the fan should be a minimum of 1mm2 in section. All wiring must comply with current I.E.E. Regulations within the UK or AS/NZS 3000 within Australia and New Zealand or local regulations if outside.
A double pole fused spur having contact separation of at least 3mm in all pole must be used and fitted with a 3A fuse.
This fan is double insulated and does not require an earth connection
